| RD-9# 1000 KG System Specifications | |
|---|---|
| Load Capacity | 1000KG / Layer |
| Layers | Standard is 4 layers (can be custom made) |
| Colour Options | Gray White Sand Blue Customizable Colors |
| Standard Dimensions |
Length (L): 1200 / 1500 / 2000 mm Width (W): 450 / 600 mm Height (H): 2000 / 2500 mm |
| Freight Note |
The generated transportation costs on the page significantly differ from the actual transportation costs. Please reach out with the product model, specifications, quantity, and delivery address to obtain an accurate shipping quote.
If you work with a Chinese freight agent, container loading and short-term storage services can be provided. |
| Load / KG | Laminate Thickness | Column Specification | Crossbeam Specification |
|---|---|---|---|
| 100 KG | 0.30 mm | 50 * 25 * 0.5 mm | 50 * 30 * 0.5 mm |
| 200 KG | 0.35 mm | 70 * 35 * 0.7 mm | 60 * 35 * 0.6 mm |
| 300 KG | 0.50 mm | 60 * 30 * 1.0 mm | 70 * 33 * 1.0 mm |
| 600 KG | 0.50 mm | 70 * 33 * 1.4 mm | 70 * 35 * 1.2 mm |
In order to have a better understanding of our product, please allow us to remind you with following three tips:
*A wide range of product models is available to suit different spaces and various budgetary considerations.
Excellent quality, unique designs, practical functionality, and wide variety serve as our core selling points. We prioritize earning trust and support from our extensive customer network.
Operating with the purpose of: "Integrity management, continuous improvement and innovation, win-win cooperation, professional production, high quality at competitive prices, and service first."

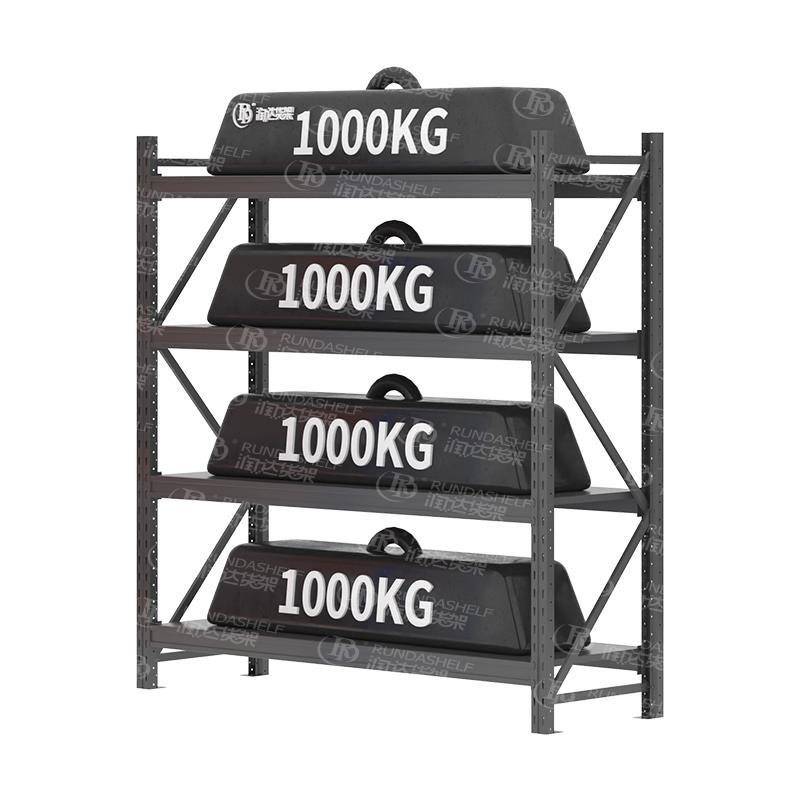

The RD-9 racking system features a maximum load capacity of 1000 KG per layer. Standard light-to-medium configurations of 100 KG, 200 KG, 300 KG, and 600 KG are also available depending on laminate and beam specifications.

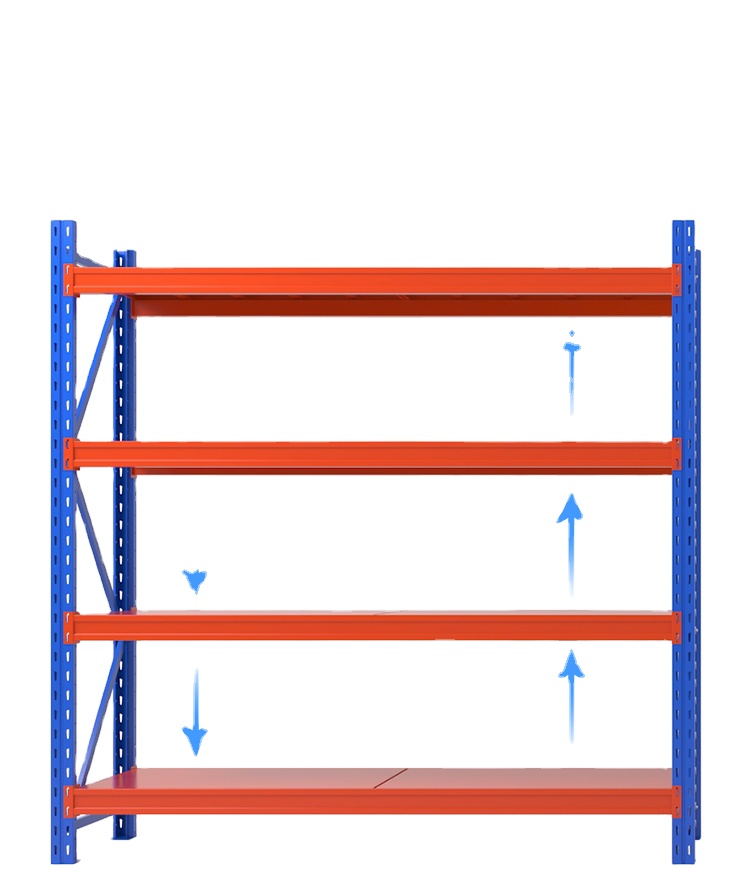

Yes, customization is fully supported. While the standard configuration comes with 4 layers, you can customize the number of layers as well as the dimensions (Length: 1200/1500/2000 mm, Width: 450/600 mm, Height: 2000/2500 mm) to fit your warehouse needs.

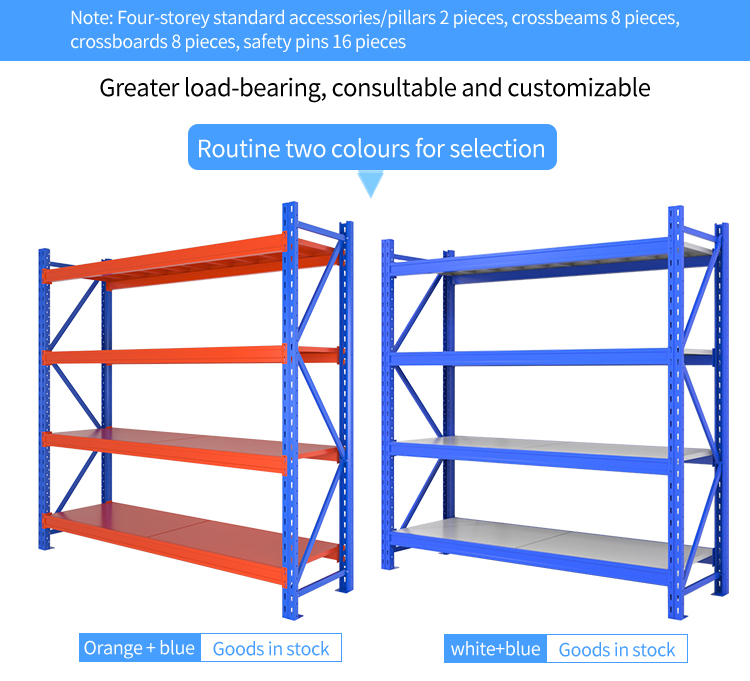

Our standard color configurations are Gray White and Sand Blue. Custom colors can also be manufactured based on your branding or warehouse color requirements.
The online freight generation is a rough estimate. Actual shipping costs vary based on order volume, package dimensions, destination, and shipping methods. Contact us with your product model, detailed specifications, quantity, and delivery address for a precise quote.
Yes. If you have your own Chinese freight forwarding agent, we can coordinate and provide professional container loading and short-term warehousing/storage services for your cargo.
We provide a wide range of custom storage solutions, including heavy-duty warehouse racks, supermarket shelving units, mezzanine support systems, and mobile growing frames designed for various spaces and budgets.
